LANCOM LX-7200E
Perfect synergy of Wi-Fi 7 and digital signage
The LANCOM LX-7200E is the ideal solution for small to medium-sized environments where both high-performance Wi-Fi and digital signage are required – particularly in retail. With cutting-edge Wi-Fi 7 technology and additional use of the 6 GHz frequencies, it ensures a stable and powerful wireless connection that effortlessly meets even the highest demands. Its unique feature is the integrated digital signage interface, which enables a seamless and energy-efficient connection to digital displays from VUSION and PDi Digital. Alternatively, SoluM and Hanshow displays can be operated via external radio modules connected through the USB interface. Additionally, the LANCOM LX-7200 series, including the LX-7200E, features a dedicated BLE module that supports future BLE-powered displays from VUSION and PDi Digital. This makes the LANCOM LX-7200E a future-proof foundation for applications such as electronic price labeling, digital advertising spaces, or information displays. The integrated digital signage interface also guarantees maximum reliability and extended battery life for the connected displays.
- Wi-Fi 7 access point with 2x2 MU-MIMO tri-band Wi-Fi – parallel operation in 2.4 GHz, 5 GHz, and 6 GHz for up to 9.6 Gbps
- Integrated 2.4 GHz radio module for energy-saving communication with digital displays for price labeling or IIoT applications
- OFDMA for more efficient Wi-Fi channel utilization
- 1x 2.5 GE PoE+ (IEEE 802.3at) and 1x 1 GE port
- IoT support: BLE 5.4 and USB 2.0
- Housing with protection class IP50 and UL 2043

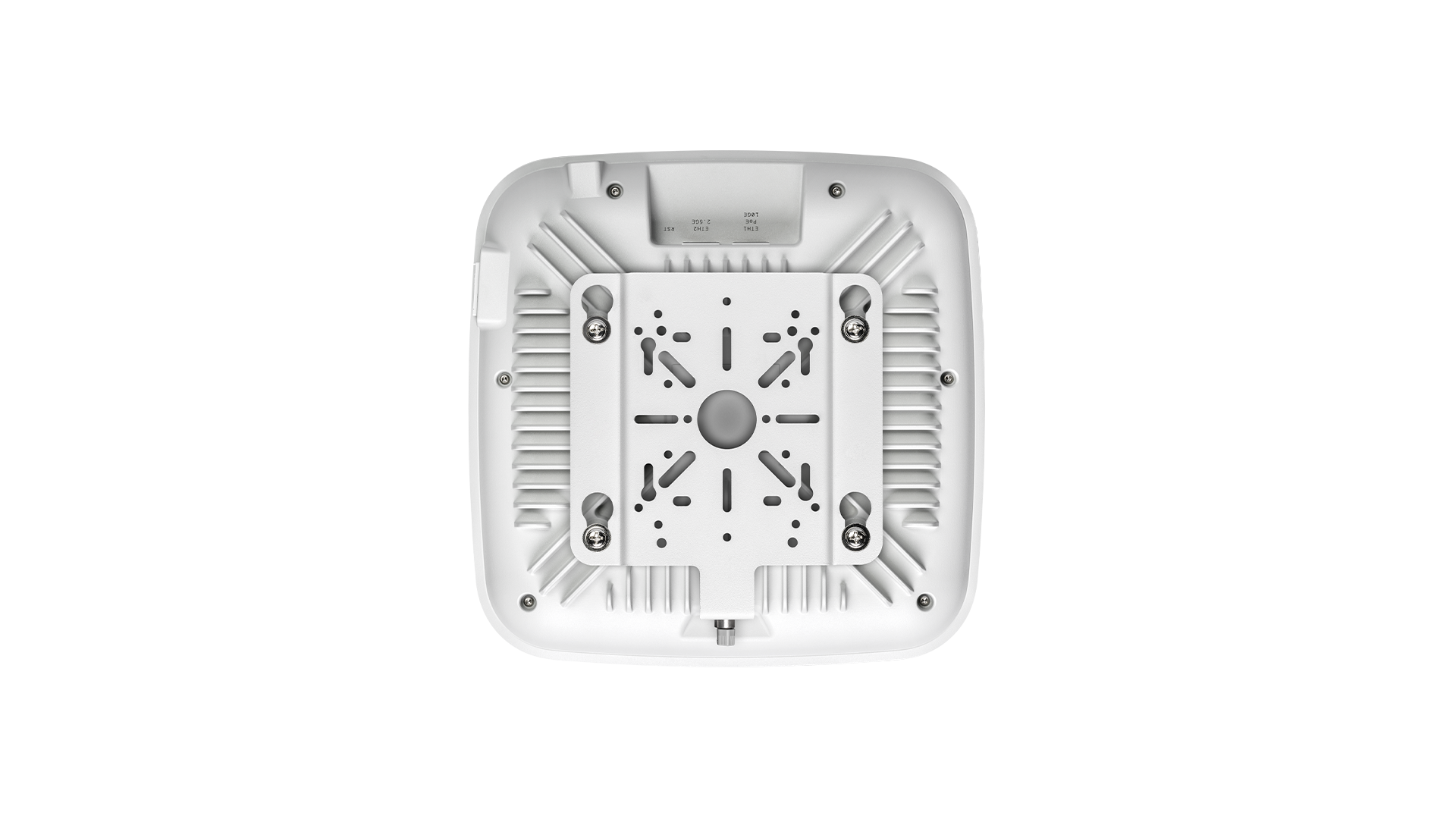

- Innovative design incl. theft-resistant and flexible mounting plate
- Power-saving functions with precise consumption monitoring
- Automated deployment, operation, and optimization via the LANCOM Management Cloud (LMC)
- WLAN controller support (including layer 3 tunneling)
Wi-Fi 7 designed for retail – powerful, cost-optimized, and future-proof
The “retail hero” LANCOM LX-7200E is based on the formula for digital retail: 3x3.
But why 3x3?
- Triple Wi-Fi support: 2.4 GHz, 5 GHz, and support of the Wi-Fi-exclusive 6 GHz band for highest stability.
- Triple ESL manufacturer support: compatibility with VUSION, SoluM, and Hanshow.
- Triple ESL technology support: Integrated ESL and BLE radio modules and the option to connect external USB radio modules.
This concept guarantees full future-proofing and independence in terms of network infrastructure, ESL manufacturers, and technologies (e.g. future BLE-based ESL solutions). Easy installation, coupled with theft protection, automated commissioning and Wi-Fi optimization, as well as the best value for money, make the LANCOM LX-7200E the optimal solution for retail.
Integrated radio module for digital signage
The additionally integrated 2.4 GHz radio module in the LANCOM LX-7200E enables seamless and cost-efficient implementation of digital signage projects by controlling digital displays from VUSION and PDi Digital. Whether electronic price tags and shelf labels in warehouses, status updates at workstations, or information displays – digital signage offers a wide range of applications. This Wi-Fi 7 access point delivers both fast, reliable wireless connectivity and simultaneous, interference-free communication with digital displays. Additionally, external USB wireless modules from SoluM and Hanshow can be connected, allowing for even greater flexibility in integrating digital signage solutions.
Housing design optimized for field use
The additionally integrated 2.4 GHz radio module in the LANCOM LX-7200E enables seamless and cost-efficient implementation of digital signage projects by controlling digital displays from VUSION and PDi Digital. Whether electronic price tags and shelf labels in warehouses, status updates at workstations, or information displays – digital signage offers a wide range of applications. This Wi-Fi 7 access point delivers both fast, reliable wireless connectivity and simultaneous, interference-free communication with digital displays. Additionally, external USB wireless modules from SoluM and Hanshow can be connected, allowing for even greater flexibility in integrating digital signage solutions.
Faster data transfer
With Wi-Fi 7, you benefit from a speed boost of up to 240% compared to Wi-Fi 6 in real-world applications. This is made possible by a doubling of the available frequency spectrum for Wi-Fi through additional 6 GHz frequencies, a doubled maximum channel width (320 MHz instead of the previous 160 MHz), and an increased data density during transmissions (4096 QAM instead of 1024 QAM in Wi-Fi 6). As a result, the LANCOM LX-7200E delivers a maximum aggregated data rate of 9.3 Gbps across all frequency bands.
More stable transmission quality
Multi-link operation (MLO) automatically uses the frequency band with better quality or even uses two frequency bands simultaneously. In addition, Multi-RU & Puncturing effectively mitigates the previously serious consequences of interference signals. This ensures significantly more reliable transmission and reception quality, especially in radio environments with high signal density.
Professional IoT support
With the LANCOM LX-7200E, you can easily immerse yourself in the world of the Internet of Things (IoT). Support for BLE 5.4 and USB 2.0 opens up many possibilities for you to communicate with modern BLE sensors in devices or objects and to use innovative applications such as asset tracking or digital signage. In addition, the LANCOM LX-7200E is already prepared for ESL via BLE 5.4 – a future-proof solution for the long-term planning of your digital signage projects.
Interference-free use of the 6 GHz frequency band for modern and future applications
Take a seat in the VIP lounge in the Wi-Fi: The LANCOM LX-7200E offers an exclusive Wi-Fi radio field free of interference in the 6 GHz frequency band. While the 2.4 and 5 GHz bands can be used by other wireless technologies such as alarm systems or audio applications, the broadband 6 GHz spectrum is intended for exclusive Wi-Fi use. This enables…
Carpooling in the radio field – OFDMA for more efficient data traffic
The radio field can be used even more optimally: Orthogonal Frequency Division Multiple Access (OFDMA) splits the frequency range of a Wi-Fi channel into several frequency blocks within a unit of time, creating subchannels (subcarriers) with a narrow channel width of up to 2 MHz. Small data packets, which among other things often originate from IoT…
Reduced overall energy consumption thanks to LANCOM Active Power Control
In light of rising energy costs and the growing societal demand for sustainable solutions, LANCOM Active Power Control provides the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution dynamically adjusts the available Wi-Fi capacity, reducing the energy consumption of your Wi-Fi infrastructure without…
Flexible operation via cloud, WEBconfig, or WLAN controller
Choose freely between operation via the LANCOM Management Cloud, stand-alone via WEBconfig or a WLAN controller! In cloud mode, the LANCOM LX-7200E becomes part of a user-friendly, holistic and automated network management system. Even in stand-alone operation, the LX-7200E offers fast configuration…
Perfect Wi-Fi at the Push of a Button – with LANCOM Active Radio Control 2.0
Retail stores are often located in urban environments with a high density of external Wi-Fi networks, which can directly impact Wi-Fi quality. LANCOM Active Radio Control 2.0 is an intelligent optimization solution that automatically ensures the best possible performance – without requiring any…
Wi-Fi out of the box
“The sound planning and implementation of a professional Wi-Fi according to the needs of the companies contributes to providing a reliable and secure wireless IT network connection. If the number of devices with their data transfer requirements exceeds the capacity of the IT network, the performance suffers, the susceptibility to interference increases and work processes are slowed down or even interrupted. Data loss and economic damage such as loss of productivity and revenue are the consequences. Outdated IT networks with low radio frequencies can no longer meet the growing data transfer challenges and quickly turn into bottlenecks.” – techconsult survey from 2023
Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0
With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.
All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
Included services
- 3 years replacement service (return & replace)
- Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support
All at a glance
Always keep track of all services and options for LANCOM hardware products with the practical Overview of the LANCOM Service & Support.
