LANCOM 1800VAW-4G
SD-WAN gateway with VDSL, 4G, and Wi-Fi 6
At company sites and branch offices with business-critical applications, a fast and at the same time highly available connection to the Internet is essential. The SD-WAN gateway LANCOM 1800VAW-4G offers flexible interface diversity with VDSL and fiber optics, and its additional 4G connectivity ensures reliable Internet backup in the event of a wired line failure. Complemented by high-performance dual-band concurrent Wi-Fi 6, mobile devices are also connected by radio. Automated network management in combination with the LANCOM Management Cloud (LMC) enables the LANCOM 1800VAW-4G to save valuable resources such as time and costs.
- SD-WAN – incl. zero-touch deployment and Auto-VPN via the LANCOM Management Cloud
- Integrated VDSL Supervectoring modem for up to 300 Mbps
- High-speed Internet via fiber optics (GPON and AON modules available separately) and Gigabit Ethernet for connection of external modems
- Dual-band concurrent Wi-Fi 6 with up to 1,200 Mbps at 5 GHz and up to 575 Mbps at 2.4 GHz
LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.
Professional integration of wireless clients via Wi-Fi 6
The LANCOM 1800VAW-4G offers wireless LAN in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously integrate clients in the 2.4 GHz frequency band as well as modern end devices in the 5 GHz band into the network and supply them with fast Wi-Fi. The dual-band concurrent Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in 5 GHz and up to 575 Mbps in 2.4 GHz in parallel.
WAN connectivity with VDSL Supervectoring & 4G
The LANCOM 1800VAW-4G offers full VDSL Supervectoring support and is also backwards compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines. Alternatively, the LANCOM 1800VAW-4G is ideal for intelligent backup scenarios to protect business-critical applications thanks to its 4G modem (Cat. 6) with 300 Mbps LTE-Advanced. High availability and speed make the branch router ideally suited for transferring data within the company network or to external cloud services.
Bearer of the IT Security Label (BSI)
The LANCOM 1800VAW-4G meets the strict security requirements of the German Federal Office for Information Security (BSI) and bears the IT Security Label.
The IT Security Label gives end users the opportunity to inform themselves about security functionalities assured by manufacturers for networked, Internet-enabled products and services.
LANCOM Trusted Access – Cloud-managed Remote Access
What does modern secure remote access look like? And how can the Zero Trust principle be integrated into your own system infrastructure? LANCOM Trusted Access (LTA) is the flexible, highly scalable solution for securely implementing modern hybrid working from anywhere and at any time and controlling it centrally and securely via cloud management.
You can find more information about LANCOM Trusted Access on the product page, the explanatory video, or in the onboarding program for sales and technicians.
Find out how to get started today!

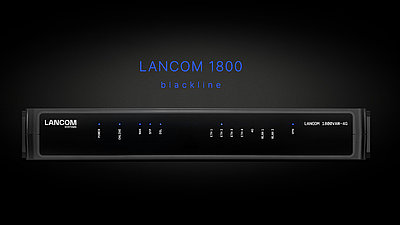

LANCOM 1800 blackline – versatility by design
Pioneering technology, clear design, and local production – this triad best describes the new LANCOM 1800 blackline housing. In combination with recycling-optimized design, reduced noise emissions, and ecological packaging, we are specifically focusing on a more sustainable product design for a secure, reliable, and long-term network infrastructure of highest quality.
Site networking with LANCOM SD-WAN
Improved network availability, higher bandwidths, and maximum data security – the demands on companies are constantly growing. Services must be available in the same quality at all locations at all times. With your SD-WAN-capable LANCOM device, you have already taken the first step on the path to highly scalable, efficient, and secure networking of distributed corporate sites. In combination with the LANCOM Management Cloud, this gives you a solution that is unique on the market.
We show you the unbeatable benefits for LANCOM SD-WAN in our SD-WAN video or on the topic web page:
Wi-Fi 6: More throughput, lower latency times
What exactly do these key words behind the new Wi-Fi standard Wi-Fi 6 signify? Especially in so-called "high-density environments", i.e. in areas with large numbers of Wi-Fi clients, Wi-Fi 6, alias IEEE 802.11ax, brings more stability and reliability to intensively used wireless LANs by making more efficient use of the available bandwidths and channels
How you can benefit from the technology with the ax-enabled LANCOM devices is shown in our Wi-Fi 6 video, on the technology page, and in the whitepaper:
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
¹ Compatible transceiver modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-CO1, SFP-BiDi1550-SC1, SFP-AON-1, SFP-GPON-1, and SFP-XGSPON-1
Included services
- 3 years replacement service (return & replace)
- Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support
All at a glance
Always keep track of all services and options for LANCOM hardware products with the practical Overview of the LANCOM Service & Support.
