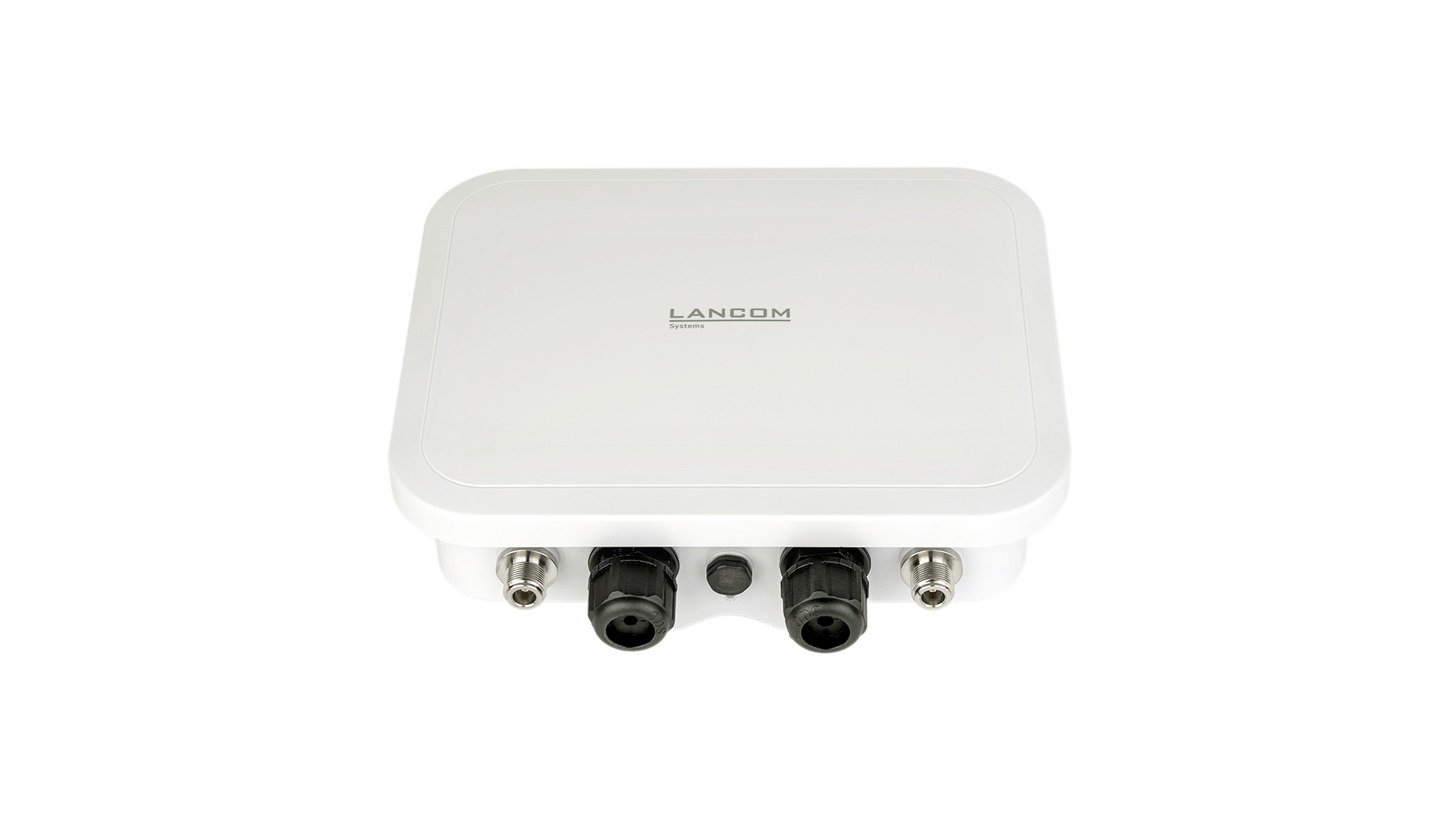

LANCOM OW-602

Highspeed Wi-Fi 6 WLAN for harsh environments

In parking lots, cold storage, warehouses, or outdoor areas – wherever professional WLAN needs to be provided under any weather conditions, the LANCOM OW-602 is the ideal and cost-effective solution. This Wi-Fi 6 outdoor access point offers low latency and high throughput per client, especially in low to medium device density environments. Included omnidirectional antennas enable wide-area coverage with the best Wi-Fi for an excellent user experience. Optional sector antennas enable targeted coverage of areas.

Technical features

  • Dual-concurrent Wi-Fi - parallel operation in 2.4 GHz and 5 GHz in Wi-Fi 6 (IEEE 802.11ax)
  • 2x2 external omnidirectional antennas
  • 2x 1 Gigabit Ethernet interface
  • Robust IP67 protective housing - reliable even at extreme temperatures (-30°C to +65°C)
  • Bluetooth Low Energy 5.1
  • optional connection of external antennas with N-connector
  • Automated operation via the LANCOM Management Cloud (LMC)
  • WLAN controller support (including layer-3 tunneling)
  • Support of the WPA3 security standard
  • Incl. mounting kit for wall and pole mounting, 2x 2.4 GHz Wi-Fi omni antennas (5 dBi), 2x 5 GHz Wi-Fi omni antennas (7 dBi)

Advantages

Dual Concurrent Wi-Fi 6 with aggregated data rate of up to 1,775 Mbps

The LANCOM OW-602 offers WLAN in the Wi-Fi 6 standard (IEEE 802.11ax) and can provide simultaniously both clients in the 2.4 GHz frequency band and modern end devices in the 5 GHz band with fast WLAN. Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in 5 GHz and up to 575 Mbps in 2.4 GHz.

Maximum reliability in all weather conditions

The LANCOM OW-602 has a rugged IP67 protective housing, making it completely dust- and waterproof. In addition, a temperature range of -30°C to +65°C guarantees reliable operation under extreme conditions.

Zero-Touch Deployment

Quick and easy network integration of the access point as well as automatic configuration assignment-without manual configuration. In WLAN controller- or LANCOM Management Cloud-based installations, the access point immediately receives a suitable configuration after network authentication.

Integrated Bluetooth Low Energy technology

The Bluetooth Low Energy radio module integrated in the LANCOM OW-602 is the technical basis for modern BLE beaconing-based applications, such as asset tracking or visitor counting.

Secure integration of external users

Using a cloud-managed hotspot via LANCOM Management Cloud, the LANCOM OW-602 is ideal for providing WLAN hotspots. The user benefits from secure and convenient Wi-Fi access, and the hotspot provider has the assurance that its own network remains separate from the guest network.

WLAN security standard WPA3

WPA3, the successor to WPA2, offers important enhancements and security features for small ("WPA3-Personal") and large ("WPA3-Enterprise") networks. WPA3-Personal uses the modern and secure authentication method Simultaneous Authentication of Equals (SAE).

Operates via the LANCOM Management Cloud

The LANCOM OW-602 offers unsurpassed user-friendliness: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology.

Uncompromising additional services for maximum future security

The LANCOM OW-602 supports the fast WLAN standard IEEE 802.11ax (Wi-Fi 6), so you are technically well equipped for future challenges. LANCOM Systems provides a warranty of 3 years on the OW-602, which can easily be extended to 5 years with the Warranty Basic Option M or the Warranty Advanced Option M. The OW-602 is also covered by a software warranty. On the software side, you also benefit from the high LANCOM standards: Several times a year, you receive free major releases of the LCOS LX operating system with new, future-proof features. Even if a product is discontinued, we offer free major releases, critical security fixes (security updates) based on the last available software version, and free technical manufacturer support for at least another 2 years as part of LANCOM software lifecycle management.

Custom fit antenna design

The use of external antennas enables optimum WLAN coverage with LANCOM WLAN access points even in wide-area or complex environments. The adjacent overview of the LANCOM IAP-822, LANCOM OAP-1702B (EOS), and LANCOM OW-602 shows the shapes and sizes of the omnidirectional antennas supplied in direct comparison.

Connectors

Application scenarios

Wi-Fi coverage in high-density environments

In areas with a high user density, such as airports, exhibition centers, or stadiums,…

In areas with a high user density, such as airports, exhibition centers, or stadiums, reliable Wi-Fi coverage for all clients in the network can pose particular challenges. This is where the use of Wi-Fi sector antennas is ideal. These can be used to focus the Wi-Fi signal and thus increase the signal strength and quality in a specific area. By avoiding unplanned signal scattering in all directions, interference and overlaps with other networks can be reduced at the same time, which also increases the Wi-Fi quality.

High-speed point-to-point connections (P2P)

With P2P connections, extensive areas with long distances can be bridged outdoors in a targeted manner and thus buildings located at different distances can be securely connected to each other via Wi-Fi. By setting up a wireless network with directional antennas, neither complex cabling nor an expensive dedicated line for network expansions are required.

Comparison of the LANCOM Wi-Fi outdoor antennas

In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?

Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.

Comparison table Wi-Fi outdoor antennas


Further information & news

Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0

With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.

All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.

Get to know LANCOM Active Radio Control 2.0

Wi-Fi 6: More throughput, lower latency times

What exactly do these key words behind the new Wi-Fi standard Wi-Fi 6 signify? Especially in so-called "high-density environments", i.e. in areas with large numbers of Wi-Fi clients, Wi-Fi 6, alias IEEE 802.11ax, brings more stability and reliability to intensively used wireless LANs by making more efficient use of the available bandwidths and channels

How you can benefit from the technology with the ax-enabled LANCOM devices is shown in our Wi-Fi 6 video, on the technology page, and in the whitepaper:

Whitepaper: The Wi-Fi standard Wi-Fi 6

Everything NIS2-compliant and digitally sovereign?

Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?

The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.

A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!

To the NIS2 check and test your own digital sovereignty

Options & accessories

Service & support

Included services

  • 3 years replacement service (return & replace)
  • Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)
