LANCOM IGS-3128XF
For industrial companies, infrastructure providers, and operators of critical systems, the LANCOM IGS-3128XF serves as a reliable distribution instance for internally networking other switches within the network. With its robust metal housing, flexible fiber-optic connectivity across all ports, and extended temperature tolerance, this cloud-ready industrial switch is ideally suited for demanding environments such as manufacturing, logistics, or energy supply. The 28-port Gigabit access switch features 24x 1G SFP ports – 4 of which can be used as combo ports (TP/SFP) – as well as 4x 10G SFP+ ports for uplinks and backbone connections. For flexible power supply options, the LANCOM IGS-3128XF comes with an internal AC power unit and an additional connector for external DC power sources. Its shallow housing depth allows for space-saving installation, particularly in compact distribution cabinets. With layer 3 lite functionality and support for the LANCOM Management Cloud (LMC), the LANCOM IGS-3128XF enables centralized and automated management of both the device and the entire network.
- Industrial Gigabit access switch with fiber-optic support on all ports: 20x 1G SFP ports, 4x combo ports (TP/SFP), and 4x 10G SFP+ ports
- AC and DC input for maximum flexibility in the choice of power supply
- Robust metal housing for reliability in harsh environments and demanding temperatures (-20 °C to +55 °C)
- Basic layer-3 features such as static routing and DHCP server
- IEEE 802.3az power saving feature – port deactivation when not transferring data
- Security with configurable access control on all ports as per IEEE 802.1X and access control lists
- Secure remote management through TACACS+, SSH, SSL, and SNMPv3
- Cloud-managed LAN for fast configuration and and convenient management via the LANCOM Management Cloud
- IPv6 and IPv4 support for modern enterprise networks
- Includes a serial configuration cable, and an IEC power cable, mounting brackets can be unscrewed
- 5-year replacement service for all components
High performance on 28 ports

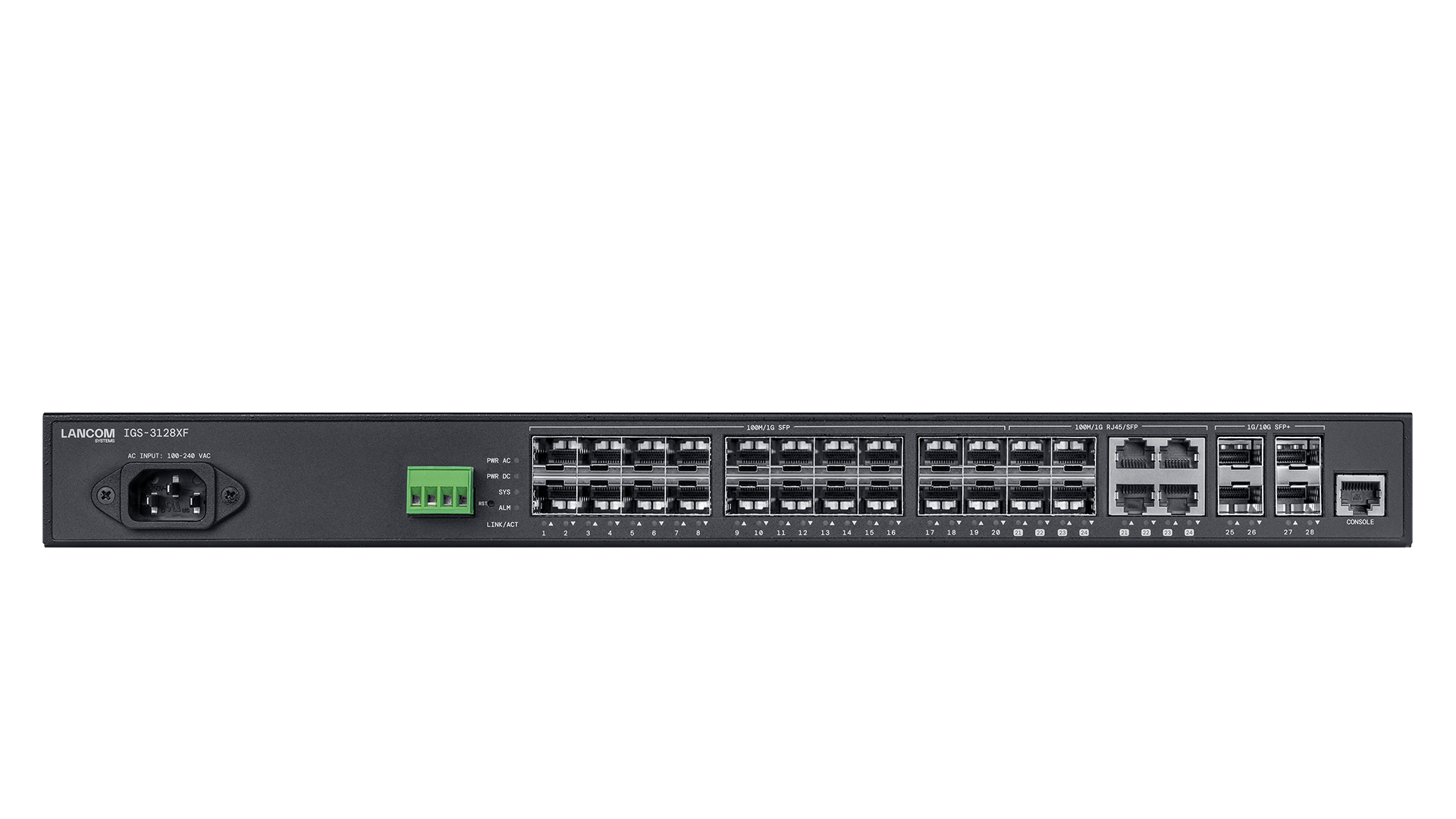

The LANCOM IGS-3128XF is equipped with 20x 1G SFP ports, 4x combo ports (TP/SFP), and 4x 10G SFP+ ports supporting transfer rates of up to 10 Gbps. The combo ports can be used flexibly as either copper (RJ45) or fiber-optic ports (SFP). With a data throughput of 128 Gbps on the backplane, it also offers full performance even under heavy load. This makes the industrial access switch the ideal central distribution instance in the network for connecting additional switches in modern network infrastructures.
Designed for industrial applications

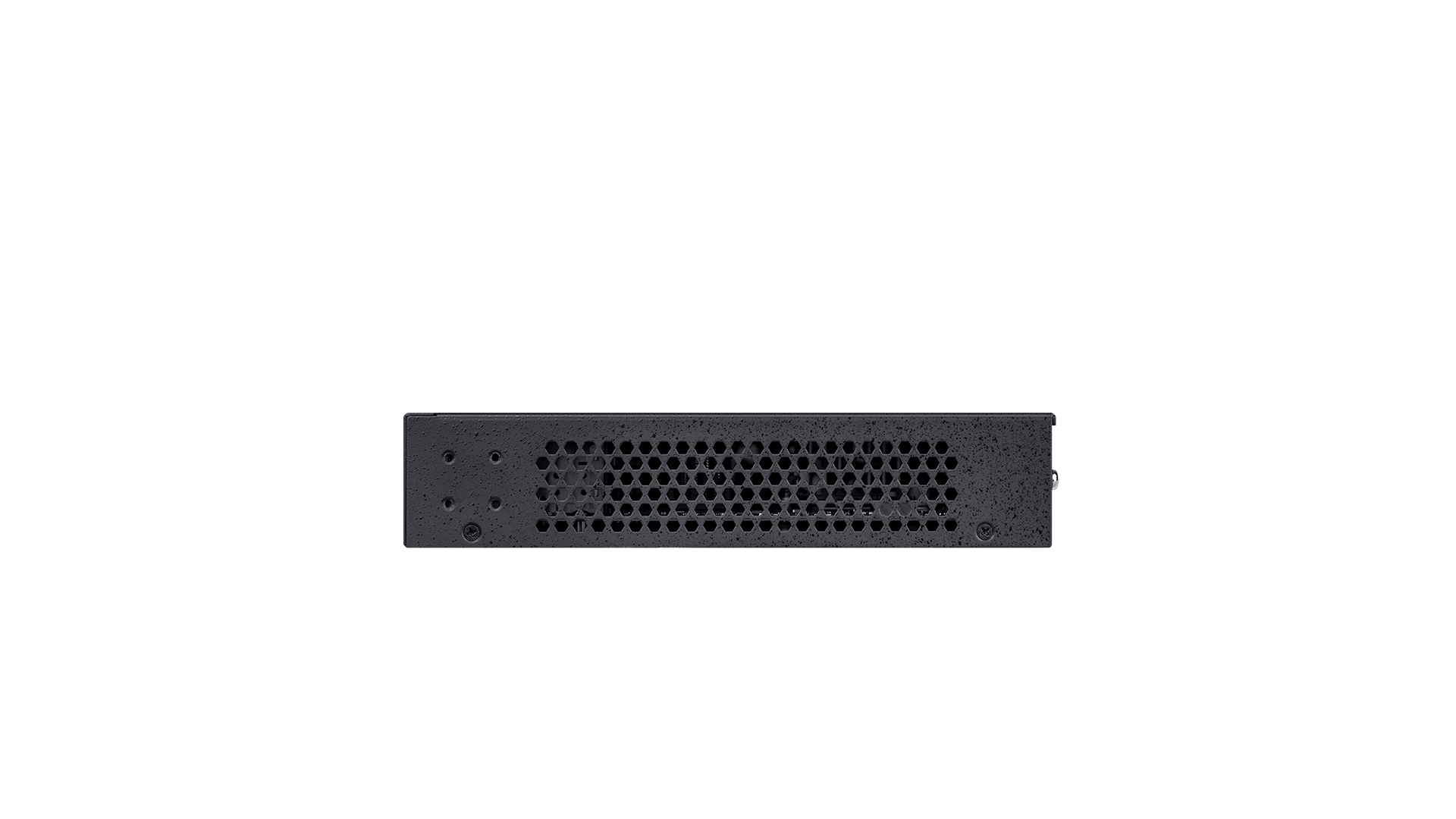

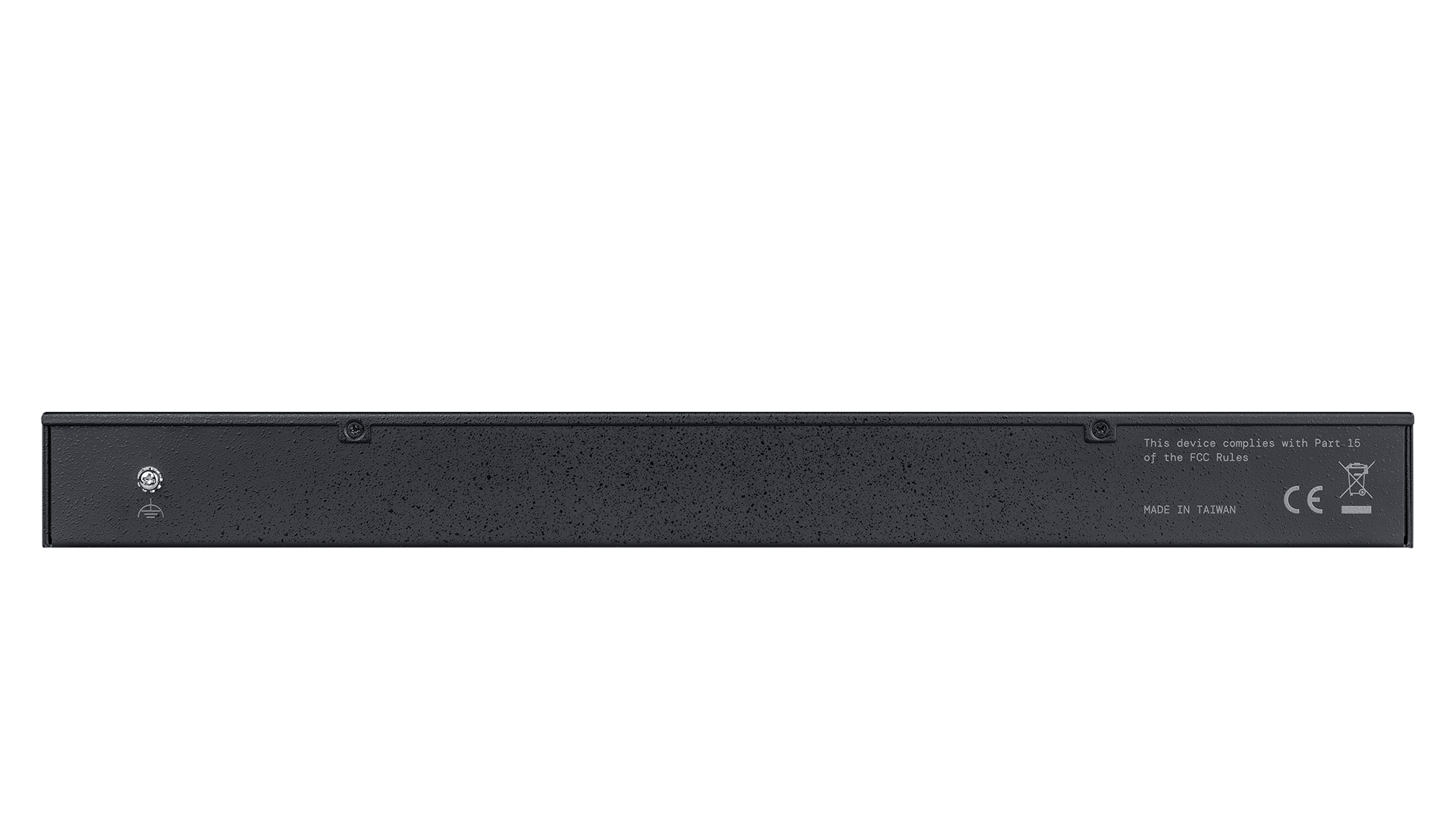

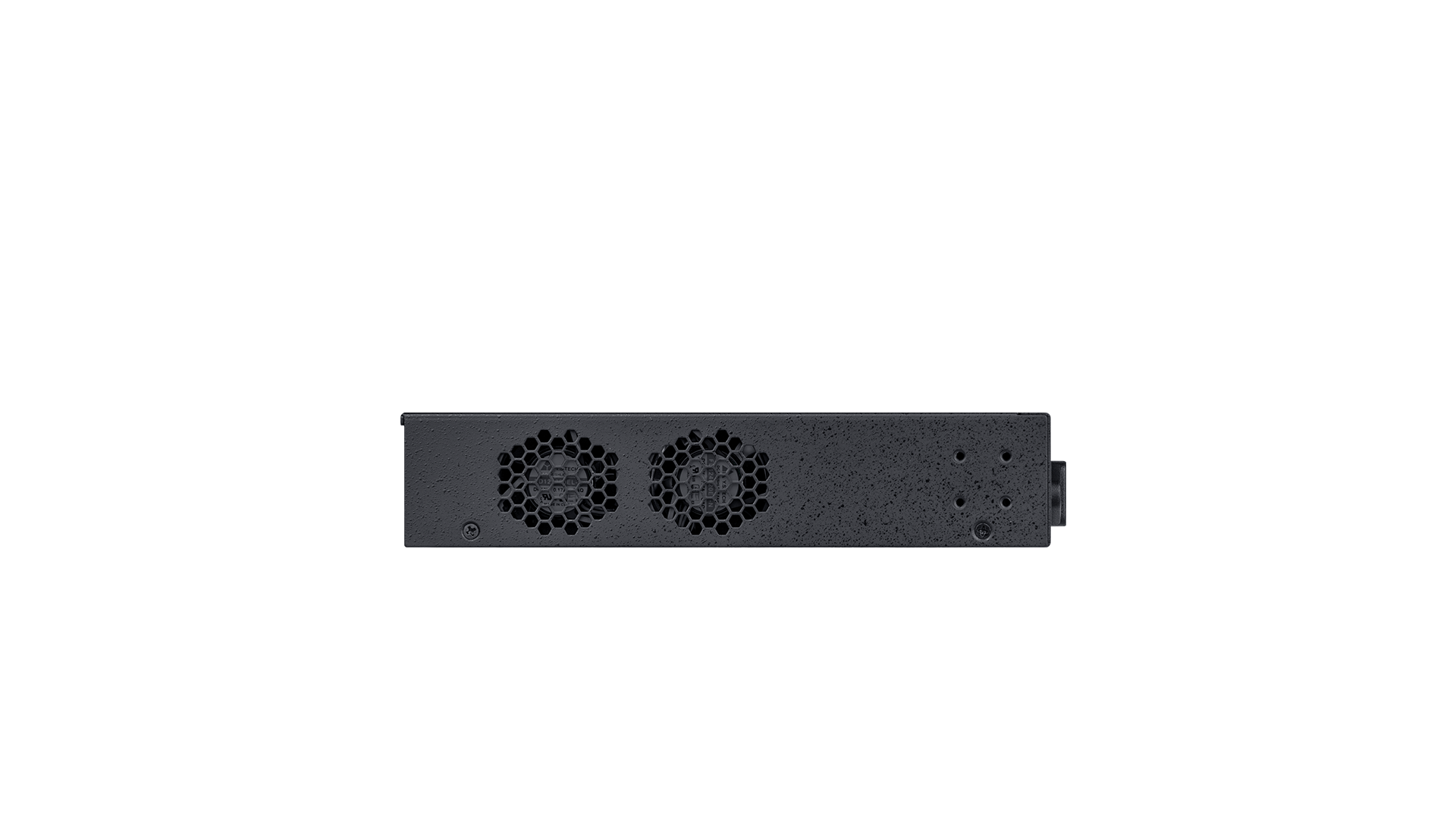

Designed for use in severe frost or extreme heat (-20 °C to +55 °C), the LANCOM IGS-3128XF is optimally tailored to the requirements of the industrial and manufacturing sectors. Its metal housing provides enhanced resistance to bumps and vibration, while AC and DC inputs offer maximum flexibility in power supply options. The shallow housing depth of just 211 mm saves valuable space and allows for flexible installation – even in small network cabinets or confined environments. Compared to many standard switches with a depth of 300–400 mm, this design leaves ample room for effective cable management and optimal air circulation.
Cloud-managed LAN with port templates and Secure Terminal Access
With the LANCOM Management Cloud (LMC) and Cloud-managed LAN, the LANCOM IGS-3128XF offers quick and easy network integration as well as automatic provision of the configuration across locations with the a click of a mouse. Time-consuming individual device and switch port configurations are now a matter of the past. The targeted switch rollout via the LMC enables automatic VLAN assignment to switch ports including practical switch port profiles and therefore “zero-touch” assignment to the…
IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM IGS-3128XF can be used in pure IPv4, pure IPv6, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can thus also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping round out the IPv6 features.
What is the best switch for your use case?
As a reliable basis for high-performance network infrastructures, the LANCOM switch portfolio is the first choice. But how do the LANCOM switch series differ? And which switch is the right one for your requirements?
You will find answers to these and other questions in our practical comparison options. Try it out right away:
Use the AI chatbot for LANCOM switches
With the LANCOM Digital Assistant Switches, a chatbot for the LANCOM switch portfolio is available to you around the clock. You can use it to make initial contact, to make simple inquiries about switch functions and switch networking, or to receive configuration instructions.
We look forward to your questions and hope you enjoy your session!
Three-tier switch networks – 100% from LANCOM
When selecting the appropriate switch architecture, factors such as company size and network availability are crucial. Switching to a three-tier network, including the new LANCOM core switch, can be a good choice.
Find out which network design suits you and what the new switching solutions series has to offer on the “Time to switch” topic page. Helpful information about switching basics, redundancy concepts, and specific configurations for the optimal use of LANCOM switches is available there for free and without registration.
Read the campus networking study now
High-performance networks in medium-sized company IT
LANCOM Systems and techconsult surveyed 2024 medium-sized companies across the industry, services, transportation / logistics, retail, finance, healthcare, and public administration sectors to understand the challenges they face.
Explore our reading sample to gain the latest insights into current network designs, network challenges, redundancy planning, and manufacturer preferences.
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
¹ Compatible transceiver modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-SX-LC10, SFP-LX-LC10, SFP-LR40-LC10, SFP-BiDi1550-SC1, SFP-BiDi1310-LC10, SFP-CO10-MG (max. 1x SFP-CO10-MG per switch), and SFP-CO1
² Compatible Direct Attach Cable: SFP-DAC10-1M / -3M
Included services
- 5 years replacement service (return & replace)
- Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support
