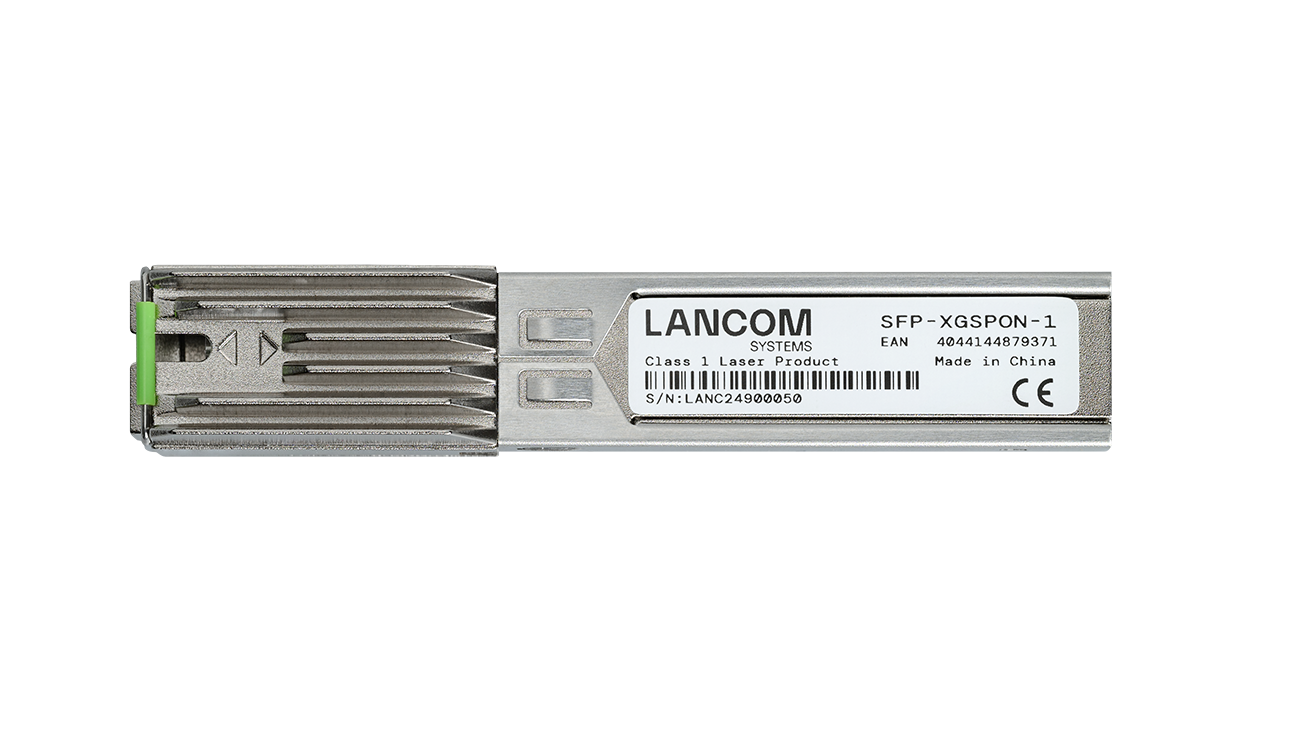

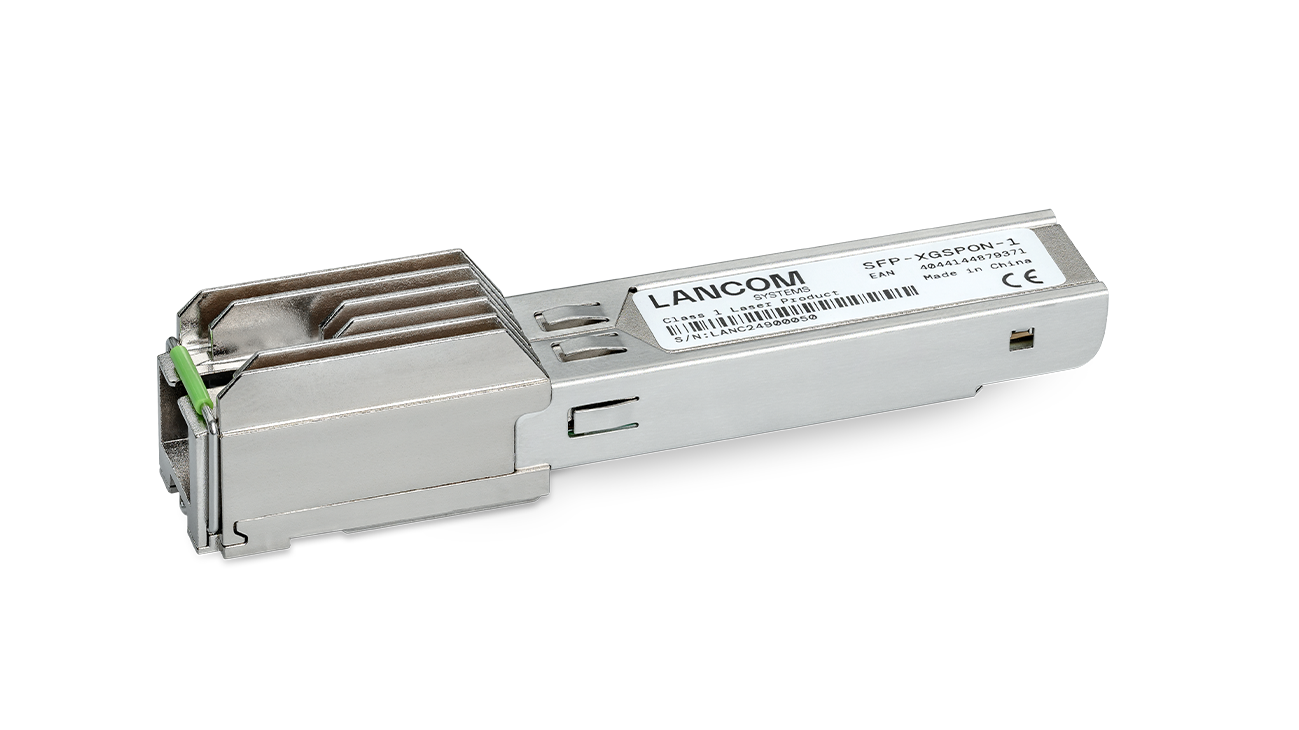

LANCOM SFP-XGSPON-1

Direct high-speed connection to passive 10G fiber optic lines (FFTH)

Designed specifically for 10 Gigabit-capable passive optical networks (XGS-PON) directly into the home (fiber to the home / FTTH), the SFP transceiver module LANCOM SFP-XGSPON-1 offers up to 10 Gbps both downstream and upstream. By simply plugging it into your LANCOM gateway, you can establish a direct fiber-optic connection to an XGS-PON network. This eliminates the time-consuming installation of a separate provider modem.

Technical features

  • Standard: XGS-PON G.9807.1 ONT
  • Simplex SC/APC transceiver
  • Transmission bandwidth of up to 10 Gbps and interference-free technology when used in 10G SFP+ ports
  • Direct connection to XGS-PON networks (10G) without a separate provider modem
  • For providers who rely entirely on XGS-PON technology for all connections, operation is also possible in devices with an SFP port (1G mode)
  • Operating temperature -40 – 85 °C
  • Easy integration into LANCOM devices of the 1800 series, 1900 series, 2100EF, ISG series, and WLC-2000
  • Including 3 m LC/APC to SC/APC connection cable

Advantages

Future-proof use of XGS-PON technology

For data transmission via fiber to the home (FTTH), XGS-PON technology represents the further development of the GPON standard. XGS-PON offers symmetrical speeds of up to 10 Gbps both downstream and upstream, which far exceeds the capacity of conventional GPON networks.

The XGS-PON module LANCOM SFP-XGSPON-1 is backward compatible with LANCOM gateways with 1G SFP interfaces and still offers up to 1 Gbps. This allows network operators to gradually modernize their infrastructure without interrupting existing services. A seamless upgrade with existing LANCOM devices to XGS-PON technology is therefore possible with the LANCOM SFP-XGSPON-1.*

Direct connection to XGS-PON FTTH networks without separate provider modem

The SFP transceiver module LANCOM SFP-XGSPON-1 handles the necessary conversion of the incoming data signals. This eliminates the need for an additional fiber-optic modem between the fiber-optic connection in the building and the gateway. This eliminates the need for cabling and installation of the modem as well as the installation of an additional power supply.

* The compatibility of the LANCOM SFP-XGSPON-1 has been tested with the support of Deutsche Telekom for operation on corresponding FTTH connections with 2 Gbps.

Easy integration of the LANCOM SFP-XGSPON-1

The LANCOM SFP-XGSPON-1 module is easily connected via the 1G SFP or 10G SFP+ ports of the LANCOM 1800, 1900, and ISG series as well as the LANCOM 2100EF and LANCOM WLC-2000.

Note: To use the LANCOM SFP-XGSPON-1, at least LCOS version LCOS 10.80 REL is required on the device side. Connecting the module to 1G SFP ports limits the maximum data transmission to 1 Gbps accordingly.

Supported devices

The LANCOM SFP-XGSPON-1 is compatible with the following LANCOM devices in XGS-PON networks:

If your provider only offers fiber-optic connections based on GPON technology, please use the ANCOM SFP-GPON-1. For connections based on active fiber-optic technology (AON), the LANCOM SFP-AON-1 with 1G support or the LANCOM SFP-AON-10 with 10G support are ideally suited. Please contact your provider to find out which standard you are using.

Further information on the fiber-optic access types can be found on the broadband expansion technology website or in the Whitepaper: Broadband expansion with fiber-optics.
