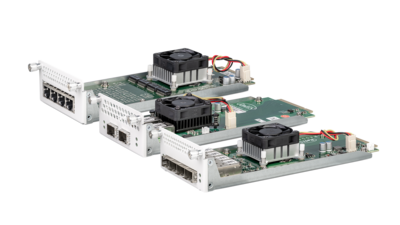

LANCOM UF Extension Modules

Versatile port extension for your firewalls

With these extension modules, you can easily and flexibly add additional ports to your LANCOM R&S®Unified Firewalls. Whether for fast fiber-optic networking or as a copper-bound Ethernet port: With the LANCOM UF Extension Modules, you can individually adapt your firewalls to your network requirements. In combination with suitable LANCOM SFP modules, you also benefit from the best connections and maximum reliability thanks to tested compatibility.

To the overview of supported devices

Modules for previous LANCOM R&S®Unified Firewalls:

UF Ext. Module 8x 1G GE (UF-500, UF-9XX)
UF Ext. Module 2x 10G GE (UF-500, UF-9XX)
UF Ext. Module 4x 1G SFP (UF-500, UF-9XX)
UF Ext. Module 2x 10G SFP+ (UF-500, UF-9XX)

Datasheet

Mounting Instructions

Compatible LANCOM R&S®Unified Firewalls

LANCOM UF Extension Module 4x 1G GE
(UF-X60)

Extension module with 4x 1 Gbps RJ45 Ethernet ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90 %

LANCOM UF Extension Module 8x 1G GE
(UF-X60)

Extension module with 8x 1 Gbps RJ45 Ethernet ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90 %

LANCOM UF Extension Module 4x 1G SFP
(UF-X60)

Extension module with 4x 1 Gbps SFP ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90

LANCOM UF Extension Module 2x 10G SFP+
(UF-X60)

Extension module with 2x 10 Gbps SFP+ ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90 %

LANCOM UF Extension Module 4x 10G SFP+
(UF-X60)

Extension module with 4x 10 Gbps SFP+ ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90 %

LANCOM UF Extension Module 2x 40G QSFP+
(UF-760)

Expansion module with 2x 40 Gbps QSFP+ ports
Operating temperature 0 °C - 45 °C
Humidity 20 % - 90 %

LANCOM UF Extension Module 2x 100G QSFP28
(UF-1060)

Extension module with 2x 100 Gbps QSFP28 ports
Operating temperature 0 °C – 45 °C
Humidity 20 % – 90 %

Modules for previous LANCOM R&S®Unified Firewalls

LANCOM UF Extension Module 8x 1G GE
(UF-500, UF-9XX)

Product photo LANCOM Firewall Extension Module 8x 1G GE

Extension module with 8x 1 Gbps RJ45 Ethernet ports
Operating temperature 0 °C - 40 °C
Humidity 5 % - 90 %

LANCOM UF Extension Module 2x 10G GE
(UF-500, UF-9XX)

Product photo LANCOM Firewall Extension Module 2x 10G GE

Extension module with 2x 10 Gbps RJ45 Ethernet ports
Operating temperature 0 °C - 40 °C
Humidity 5 % - 90 %

LANCOM UF Extension Module 4x 1G SFP
(UF-500, UF-9XX)

Product photo LANCOM Firewall Extension Module 4x 1G SFP

Extension module with 4x 1 Gbps SFP ports
Operating temperature 0 °C - 40 °C
Humidity 5 % - 90 %

LANCOM UF Extension Module 2x 10G SFP+
(UF-500, UF-9XX)

Product photo LANCOM Firewall Extension Module 2x 10G SFP+

Extension module with 2x 10 Gbps SFP+ ports
Operating temperature 0 °C - 40 °C
Humidity 5 % - 90 %

Supported devices

Compatibility of the LANCOM UF Extension Modules with LANCOM R&S®Unified Firewalls, Transceiver-Modulen (SFP), and Direct Attach Cables (DAC):

¹ only for remote site with 1 Gbps limit, ² only for 10 Gbps
	UF Extension Module (UF-X60) 4x 1G GE / 8x 1G GE	UF Extension Module (UF-X60) 4x 1G SFP	UF Extension Module (UF-X60) 2x 10G SFP+ / 4x 10G SFP+	UF Extension Module (UF-760) 2x 40G QSFP+	UF Extension Module (UF-1060) 2x 100G QSFP28	UF Extension Module (UF-500, UF-9XX) 8x 1G GE / 2x 10G GE	UF Extension Module (UF-500, UF-9XX) 4x 1G SFP / 2x 10G SFP+
R&S®UF-1060						–	–
R&S®UF-760					–	–	–
R&S®UF-360				–	–	–	–
SFP-LX-LC1 SFP-SX-LC1 SFP-SX2-LC1	–		(¹ with 4x) (¹ with 4x) (¹ with 2x)	–	–	–
SFP-LX-LC10 SFP-SX-LC10 SFP-DAC10	–			–	–	–
SFP-AON-1	–		–	–	–	–	–
SFP-BiDi-1310-LC10	–	–	²	–	–	–	–
SFP-SR-MPO40 SFP-LR-LC40 SFP-DAC40	–	–	–		–	–	–
SFP-LR-LC100 SFP-SR-MPO100 SFP-DAC100	–	–	–	–		–	–
R&S®UF-910 / UF-900 (EOS)	–	–	–	–	–
R&S®UF-500 (EOS)	–	–	–	–	–
