LANCOM Transceiver Modules
Flexible connections for your switches, routers, and firewalls
LANCOM switches, routers, and firewalls with integrated SFP ports are characterized by maximum versatility in use. Be it for high-speed fiber-optic networking or as a copper-cabled Ethernet port: LANCOM Transceiver modules provide the specialized connections you need for your LANCOM device. And thanks to the tried-and-tested compatibility with LANCOM products, LANCOM Transceiver offer the best connections and highest reliability.
The LANCOM transceiver modules for fiber-optic networking of components in Gigabit speed are compatible with SFP ports of all of the switches, routers and Unified Firewalls listed in the table below.
![[Translate to English:] SFP-Modul SX-LC1](/fileadmin/images/products/lc_sfp-modules/SFP-SX-LC1.png "[Translate to English:] SFP-Modul SX-LC1")
- 1000BASE-SX standard (SFP)
- Up to 1 Gbps link speed
- Full-duplex mode
- Supports 50/125 µm (550 m cable length) and 62.5/125 µm (300 m cable length) multimode fiber
- Wavelength 850nm
- Operating temperature 0–70 °C
- LC connector
- Support of digital diagnostic monitoring (DDM)*
- Also available as 10-piece bulk package
![[Translate to English:] SFP-Modul LX-LC1](/fileadmin/images/products/lc_sfp-modules/SFP-LX-LC1.png "[Translate to English:] SFP-Modul LX-LC1")
* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with LANCOM R&S®Unified Firewalls.
![[Translate to English:] SFP-Modul SX-LC10](/fileadmin/images/products/lc_sfp-modules/SFP-SX-LC10.png "[Translate to English:] SFP-Modul SX-LC10")
![[Translate to English:] SFP-LX-LC10](/fileadmin/images/products/lc_sfp-modules/SFP-LX-LC10.png "[Translate to English:] SFP-LX-LC10")
![[Translate to English:] LANCOM SFP-LR40-LC10](/fileadmin/images/products/lc_sfp-modules/SFP-LR40-LC10.png "[Translate to English:] LANCOM SFP-LR40-LC10")
* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with LANCOM R&S®Unified Firewalls.
![[Translate to English:] LANCOM SFP-SR-LC25](/fileadmin/images/products/lc_sfp-modules/SFP-SR-LC25.png "[Translate to English:] LANCOM SFP-SR-LC25")
![[Translate to English:] Produktbild LANCOM SFP-Modul SFP-LR-LC25](/fileadmin/images/products/lc_sfp-modules/SFP-LR-LC25.png "[Translate to English:] LANCOM SFP-Modul SFP-LR-LC25")
![[Translate to English:] LANCOM SFP-SR-MPO40](/fileadmin/images/products/lc_sfp-modules/SFP-SR-MPO40.png "[Translate to English:] LANCOM SFP-SR-MPO40")
![[Translate to English:] LANCOM SFP-LR-LC40](/fileadmin/images/products/lc_sfp-modules/SFP-LR-LC40.png "[Translate to English:] LANCOM SFP-LR-LC40")
- 100GBASE-SR4 QSFP module (QSFP28)
- Up to 100 Gbps link speed
- Supports 50/125 µm multi mode fiber (max. distance: OM3: 70 m, OM4: 100 m)
- Wavelength 850 nm (4 channels)
- Operating temperature 0-70 °C
- MPO port (MPO 12-connector)
- Connection to QSFP28 ports
- Swappable during system operation
- Also available as 10-piece bulk package
Bidirectional transceiver modules require only a single optical fiber for data transmission, which simplifies network provisioning, cabling, and configuration.
- Transmitting and receiving via only one optical fiber with two separate
- wavelengths (1310 nm / 1550 nm)
- SC/UPC connector
- Up to 1 Gbps link speed
- Full duplex operation
- Supports 9/125 µm (20 km cable length) single mode fiber
- Support for Digital Diagnostic Monitoring (DDM)
- Swappable during system operation (hot-pluggable)
- Transmitting and receiving via only one optical fiber with two separate
- wavelengths (1270 nm / 1330 nm)
- LC/UPC connector
- Up to 10 Gbps link speed
- Full duplex operation
- Supports 9/125 µm (20 km cable length) single mode fiber
- Support for Digital Diagnostic Monitoring (DDM)
- Swappable during system operation (hot-pluggable)
In order to use a SFP port of the devices listed in the table below for Gigabit speed over copper lines, we offer the following transceiver modules:
- RJ45 Ethernet transceiver 1000BASE-T
- Up to 1 Gbps link speed
- Full-duplex mode
- Operating temperature 0–70 °C
- Also available as 10-piece bulk package
Note: For operating LANCOM SFP-CO1 in a LANCOM switch, a firmware LCOS SX 3.30 RU3 or higher is required. The firmware is available in our download section.
The optical transceivers (SFP modules) offered here have been tested and approved across all models by LANCOM quality assurance. This means that you receive the full warranty and manufacturer support for these modules. Please note that support for third-party accessories (SFP) is excluded.
Notes:
- The modules SFP-SX-LC1, SFP-LX-LC1, and SFP-SX2-LC1 are downward compatible with the 1 Gbps SFP interfaces of all LANCOM R&S®Unified Firewalls and LANCOM switches.
- The module SFP-CO1 is not suitable for LANCOM GS-13xx, LANCOM 190x, and LANCOM 2326x(+), as these products are equipped with combo ports.
|
SFP-SX-LC1 / SFP-SX2-LC1 / SFP-LX-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 / SFP-LR40-LC10 |
SFP-SR-LC25 / SFP-LR-LC25 |
SFP-SR-MPO40 / SFP-LR-LC40 |
SFP-SR-MPO100 / SFP-LR-LC100 |
SFP- BiDi1550-SC1 |
SFP- BiDi1310-LC10 |
SFP-CO1 |
SFP-CO10-MG |
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
||||||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
max. 4 per switch |
|||
|
|
|
|
|
|
max. 4 per switch |
||||
|
|
|
|
|
max. 4 per switch |
|||||
|
|
|
|
|
|
|
|
max. 4 per switch |
||
|
|
|
|
|
|
max. 2 per switch |
||||
|
|
|
|
|
|
max. 1 per switch |
||||
|
|
|
|
|
max. 1 per switch |
|||||
|
|
|
|
|
||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
|
SFP-SX-LC1 / SFP-SX2-LC1 / SFP-LX-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 / SFP-LR40-LC10 |
SFP-CO1 |
SFP- CO10-MG |
SFP- BiDi1550- SC1 |
SFP- BiDi1310- LC10 |
SFP- AON-10 |

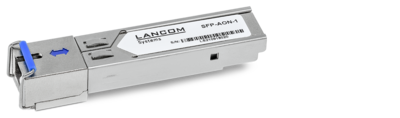

SFP- AON-1 |
SFP- XGSPON-1 |

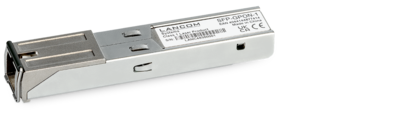

SFP- GPON-1 |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
|
|
– |
|
|
|
|
|
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
|
|
|
|
|
– |
|
– |
|
|
|
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
|
|
Compatibility of transceiver modules with LANCOM R&S®Unified Firewalls and LANCOM UF Extension Modules
|
SFP-SX-LC1 / SFP-LX-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 |
SFP-SR-MPO40 / SFP-LR-LC40 |
SFP-CO1 |
SFP-AON-1 |
|
|---|---|---|---|---|---|
|
with UF Extension Module 4x 1G SFP (UF-X60) with UF Extension Modules 2x 10G SFP+ / 4x 10G SFP+ (UF-X60) with UF Extension Module 2x 40G QSFP+ (UF-760) |
|
|
– – –
|
– – – – |
–
– – |
|
with UF Extension Module 4x 1G SFP (UF-X60) with UF Extension Modules 2x 10G SFP+ / 4x 10G SFP+ (UF-X60) |
|
|
– – – |
– – – |
–
– |
|
|
– |
– |
– |
|
|
|
|
– |
– |
|
|
|
|
R&S®UF-910 / UF-900 (EOS) with Extension Modules 4x 1G SFP / 2x 10G SFP+ (UF-500, UF-9XX) |
–
|
–
|
– – |
– – |
– – |
|
R&S®UF-500 (EOS) with Extension Modules 4x 1G SFP / 2x 10G SFP+ (UF-500, UF-9XX) |
–
|
–
|
– – |
– – |
– – |
